Windows XP: simple security research

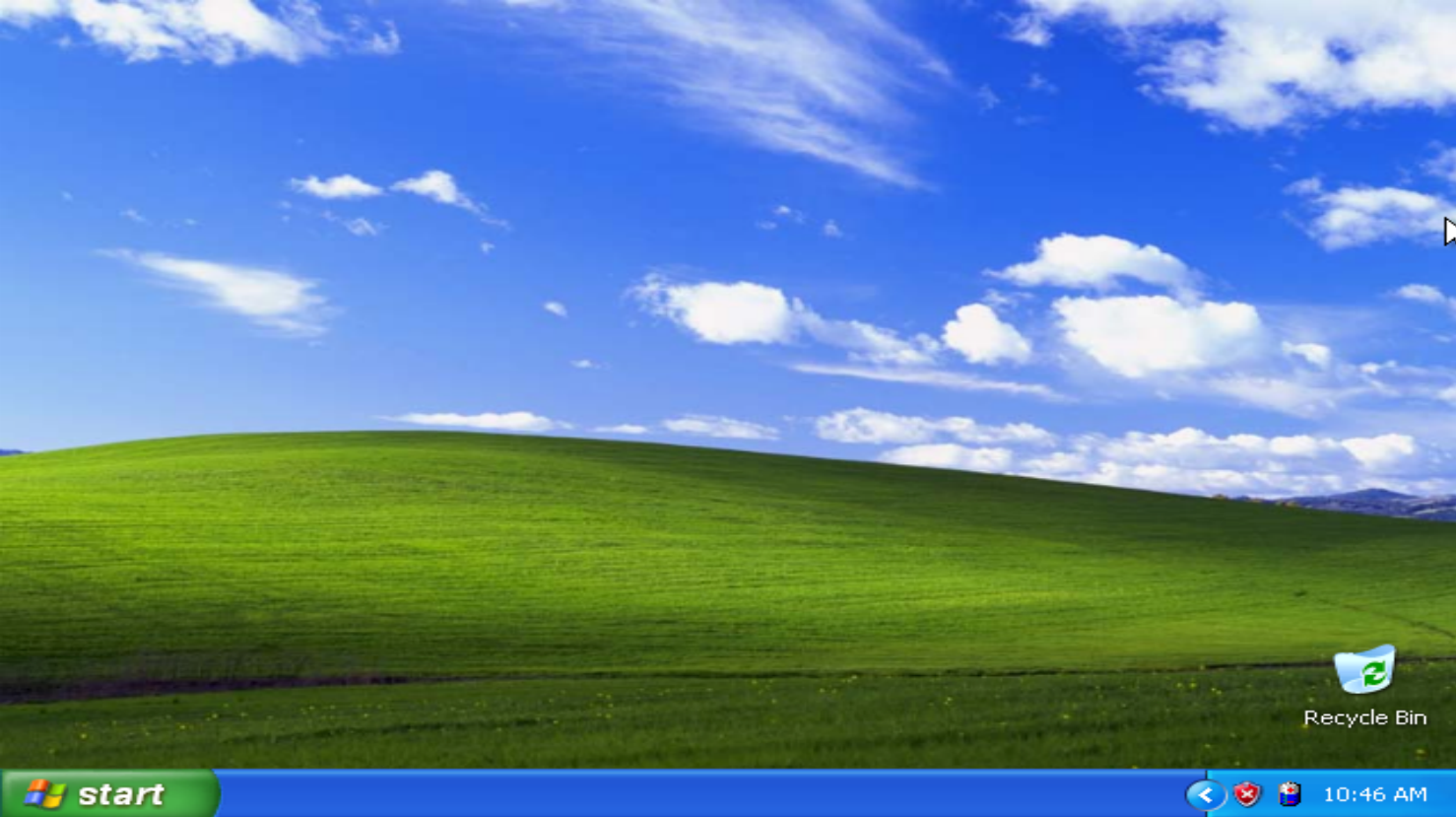

Picture 1. Windows XP Interface

Introduction. I've never used Windows. I decided to start my acquaintance with Windows XP and its default applications. I was interested in Internet Explorer, and it will be discussed further.

Why do I need a start if I have Internet Explorer? ;)

Part 1. Old vulnerability

I'm not used to using file managers. Out of habit, I wrote the path to the folder I wanted to view in IE using file protocol. And then I suspected something strange ;)

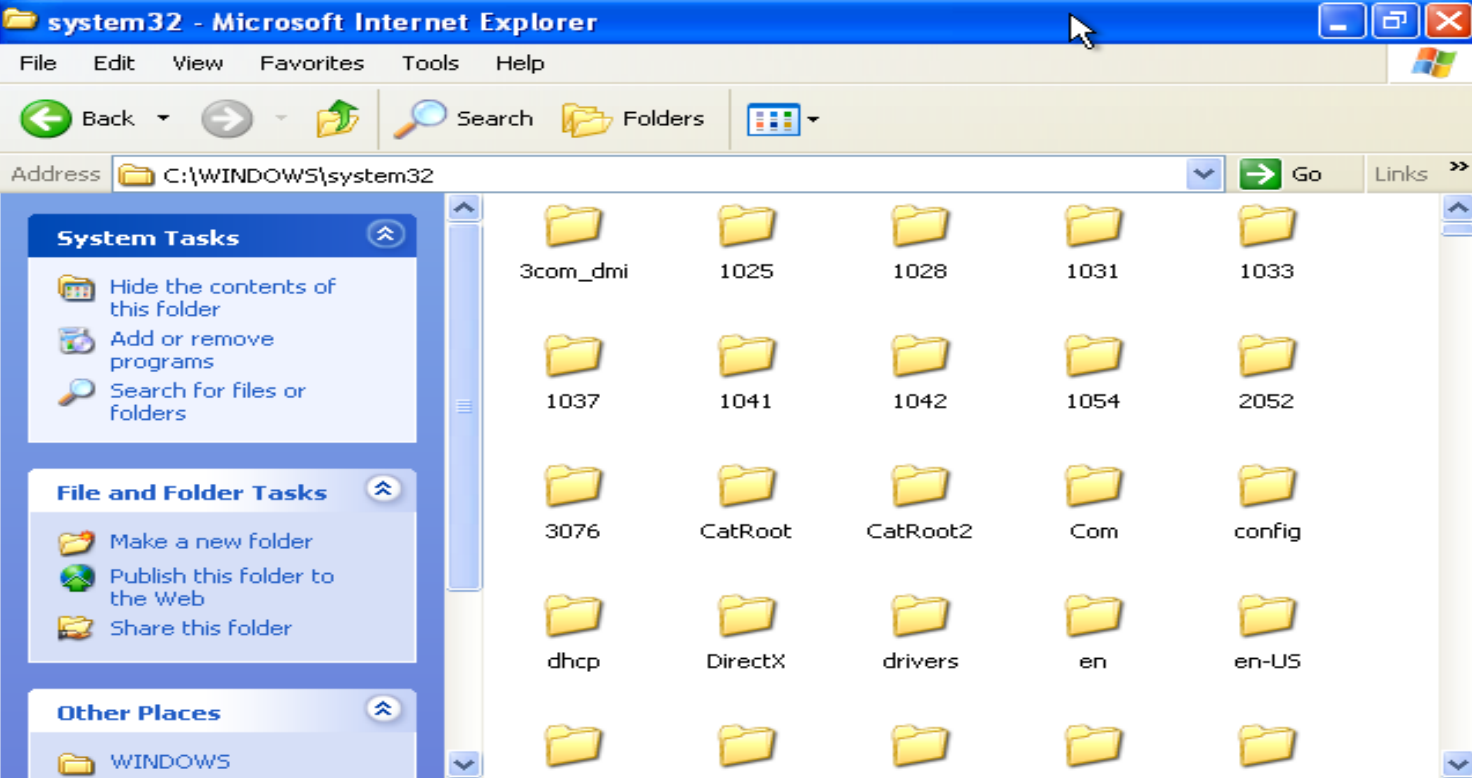

Picture 2. The path to the system32 folder in IE

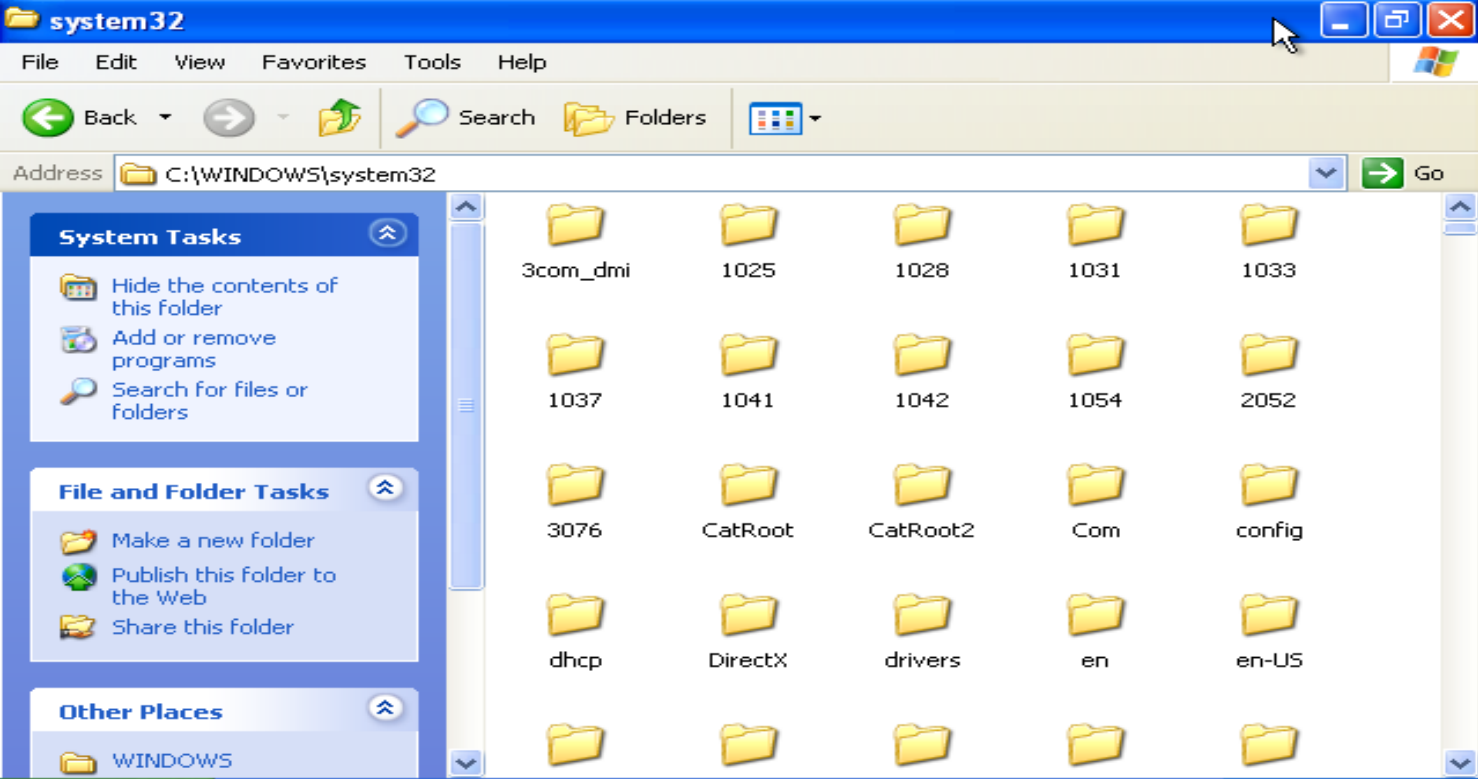

Picture 3. The path to the system32 folder in the file manager

I decided to run a couple of tests to observe the behavior:

1. URL: C:\WINDOWS\system32\cmd.exe - Run cmd.

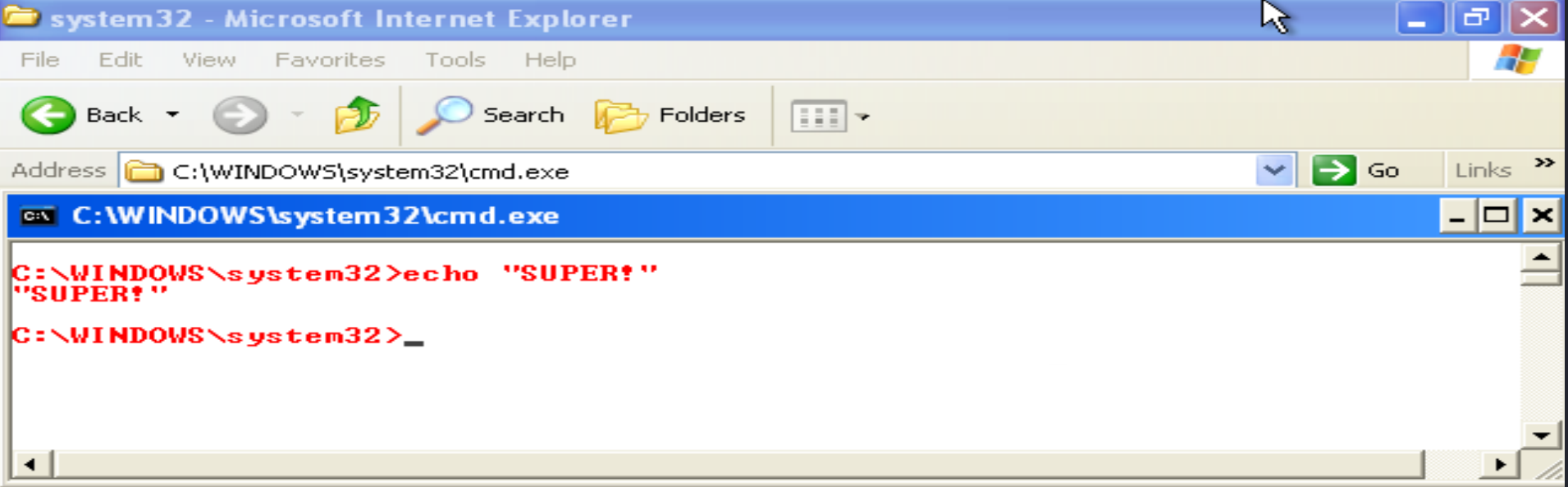

Picture 4. Running cmd from IE 2. I wrote the code in my notebook:

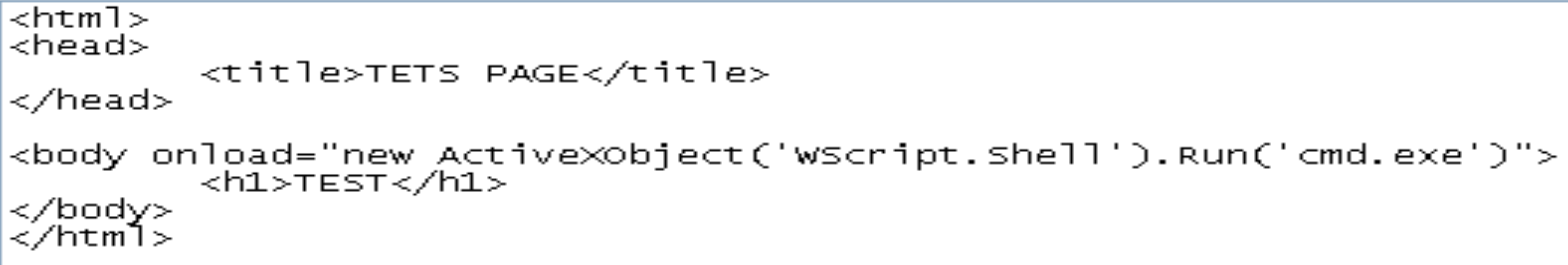

Picture 5. Launching via WScript.Shell Loading the page:

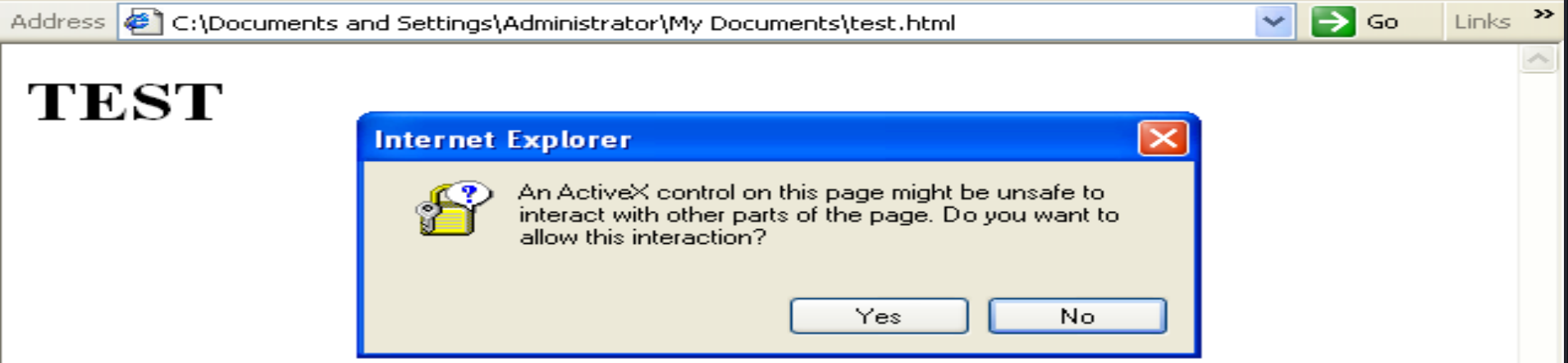

Picture 6. Warning If allowed, cmd is started:

Picture 7. Running cmd 3. There is an option with a link:

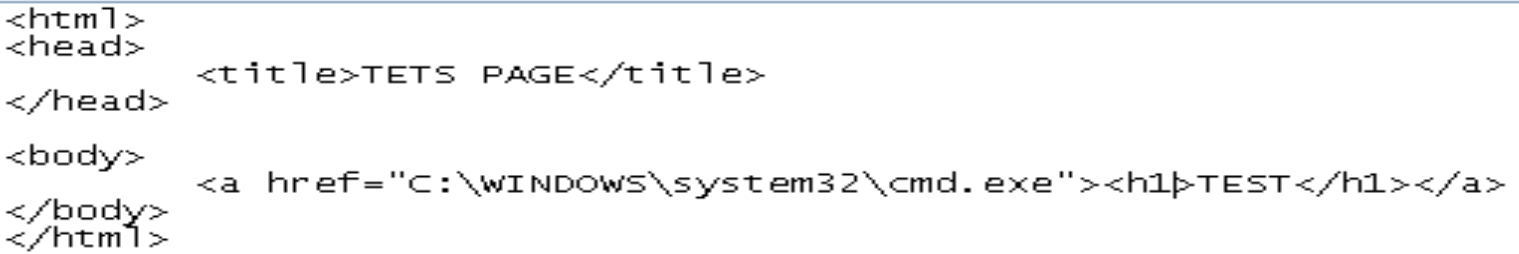

Picture 8. Launching via a link

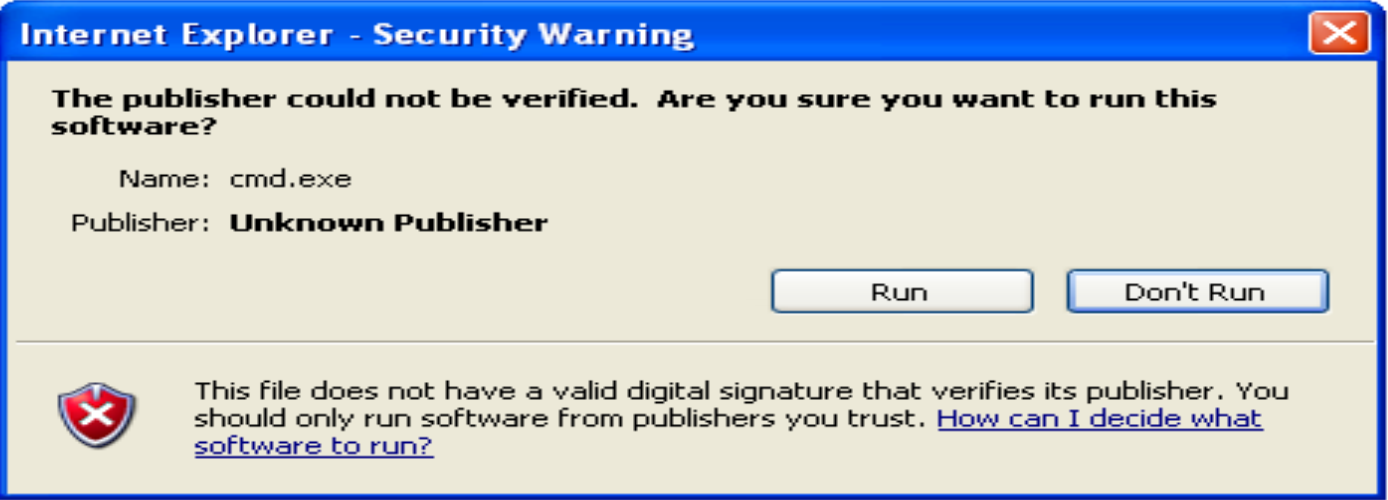

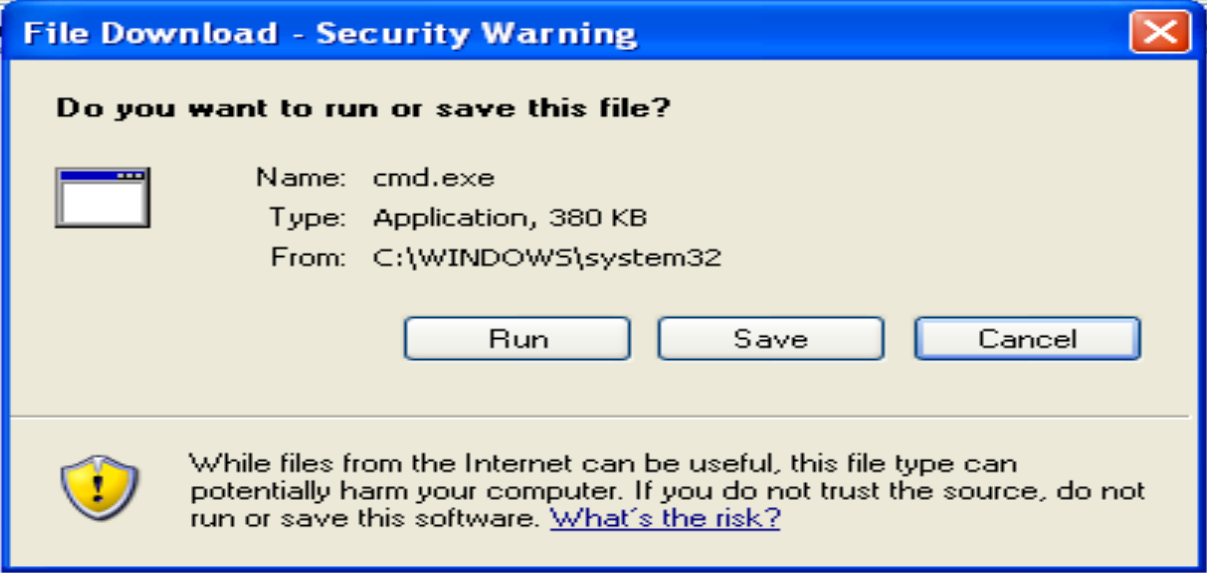

Picture 9. Warning

Picture 10. Warning

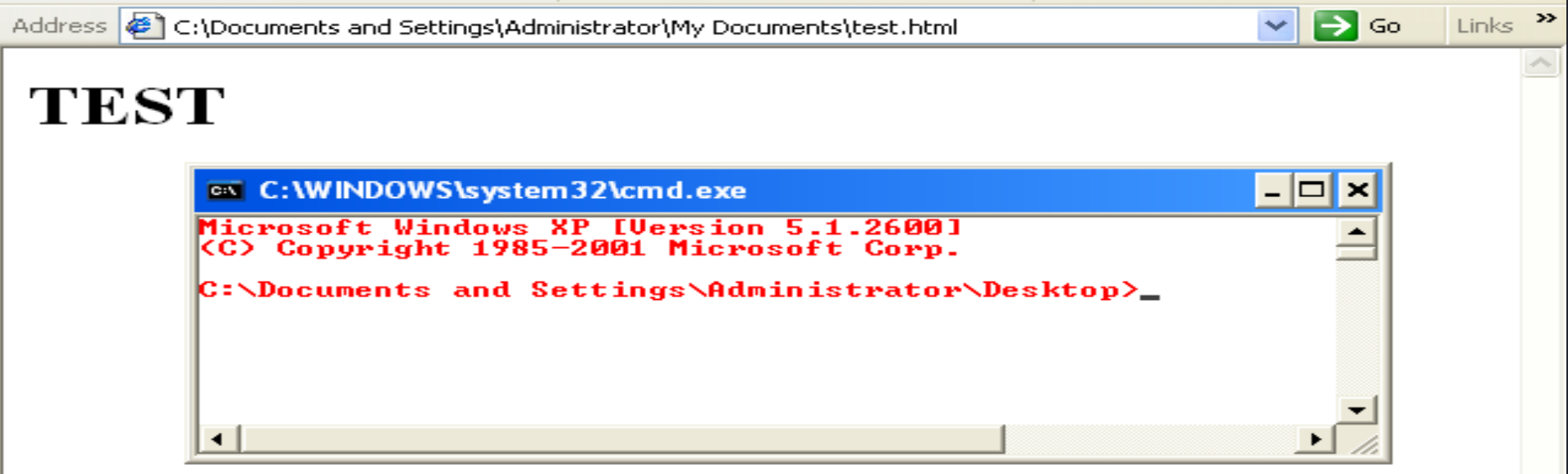

Picture 11. Running cmd

Part 2. Slightly reverse (Let's figure out why you can run applications from the browser)

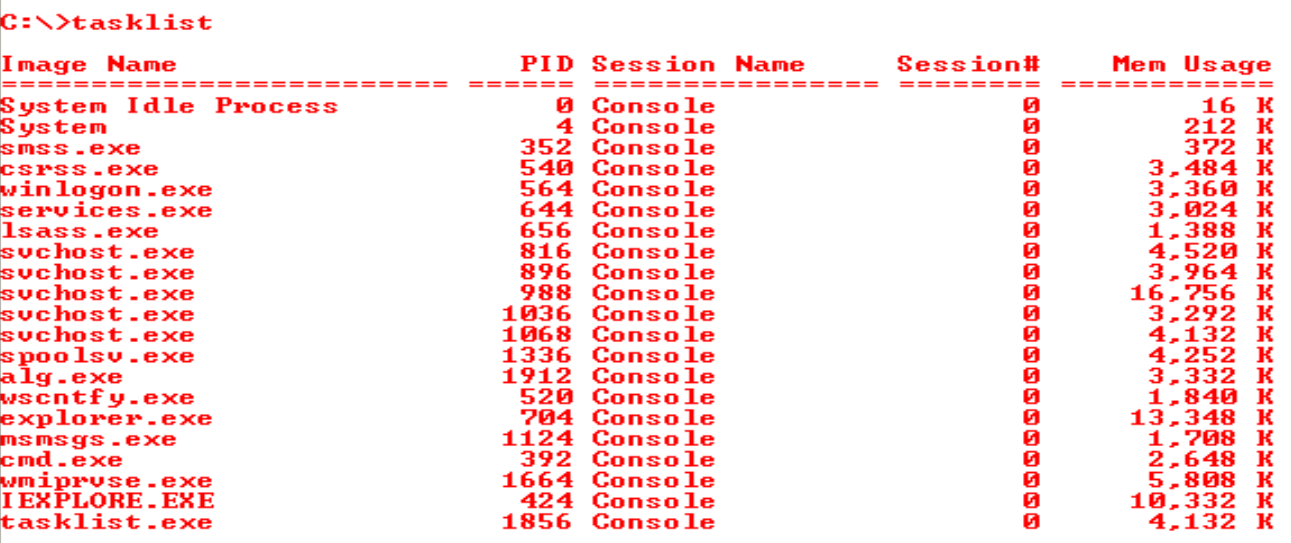

1. We launch ie and look at the running processes.

2. By its PID, we find the location before it.

3. I pulled it out iexplore.exe - there is no logic for processing the url string, it works as a loader.

4. I went to reverse shdocvw.dll (since it's an engine for ie).

5. sym.SHDOCVW.dll_HlinkFrameNavigateNHL is a function that breaks it down into different protocols. Defines the protocol type via fcn.7e2b1da0

0x7e302c71 call fcn.7e2b1da0
0x7e302c76 cmp eax, 9
0x7e302c79 jne 0x7e302cc9

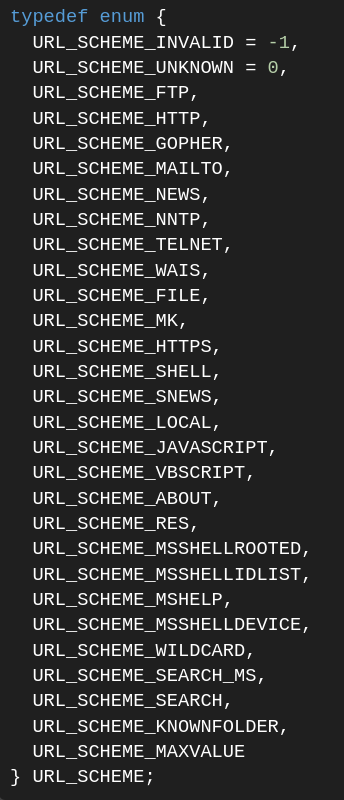

We determine the similarity with URL_SCHEME.

Picture 14. url: microsoft

That is, if eax != 9, then jump to 0x7e302cc9.

sym.SHDOCVW.dll_HlinkFrameNavigateNHL (ShellExecuteA) - launching applications:

• We get the source string, string length:

0x7e302c4b push dword [lpString]
0x7e302c51 call dword [sym.imp.KERNEL32.dll_lstrlenW]

• Copy the string to the buffer:

0x7e302cd4 push esi
0x7e302cd5 push dword [lpString]
0x7e302cdb lea eax, [var_1254h]
0x7e302ce1 push eax
0x7e302ce2 call edi

• From Unicode to ANSI

0x7e302d15 push esi
0x7e302d16 lea eax, [lpFile]
0x7e302d1c push eax
0x7e302d1d lea eax, [var_1254h]
0x7e302d23 push eax
0x7e302d24 push dword [var_1ad4h]
0x7e302d2a call dword [sym.imp.SHLWAPI.dll_SHUnicodeToAnsiCP]

• Transfer to ShellExecuteA

0x7e302d34 lea eax, [lpFile]
0x7e302d3a push eax
0x7e302d3b push ebx
0x7e302d3c push ebx
0x7e302d3d call dword [sym.imp.SHELL32.dll_ShellExecuteA]

P.S. ShellExecute is a function in the Windows API.

Conclusion: This is obtained by RCE which is achieved by XSS. That is why ActiveX was later killed in browsers.
